Steel Strapping SpecBWG281/25/8 BWG271/25/8 BWG251/25/83/4 BWG245/83/4 BWG235/83/4 BWG223/45/4 BWG213/45/ BWG203/45/4 Sort of the steel packing strips. (1) Blue steel packing strips.. (2) Painted steel packing strips(black, green and so on)
Steel Strapping
Spec BWG28×1/2"5/8" BWG27×1/2"5/8" BWG25×1/2"5/8"3/4" BWG24×5/8"3/4"
BWG23×5/8"3/4" BWG22×3/4"5/4" BWG21×3/4"5/" BWG20×3/4"5/4"
Sort of the steel packing strips.
(1) Blue steel packing strips..
(2) Painted steel packing strips(black, green and so on)
Mechanical Properties
(1) Ordinary steel: The product is made from ordinary carton structured and high quality carbon structured steel via cold-rolled, it applys to pack wood, paper, glass, stone, textile, pallet, box and so on..
Ordinary (1) tensile strength σb ≥ 70-85kg/mm2 (Mpa) ≥ 700-850mm2 elongation ≥3-5%
(2)Standard steel: The product is made from ordinary carbon structured and hing quality carbon structeued steel via cold-rolled, it applys to pack profiled bar,tube steel,strip,cotton textile,timbering,metel and so on.
Standard(11):tensile strength σb ≥90-100kg/mm2 (Mpa) ≥ 882-980mm2elongation ≥ 4-8%
Wound type
(1)Ribbon wood
ID200mm, 300mm, 406mm
Sizethickness0.3-0.9mm, width12.7mm, 16mm, 19mm, 25mm, 32mm
Coil weightwidth12.7mm,10-25kg/bundle; width16mm, 19mm, 25mm, 25kg/bundle; width32mm 50kg/bundle, ±1kg, can produce it as per customer's request,

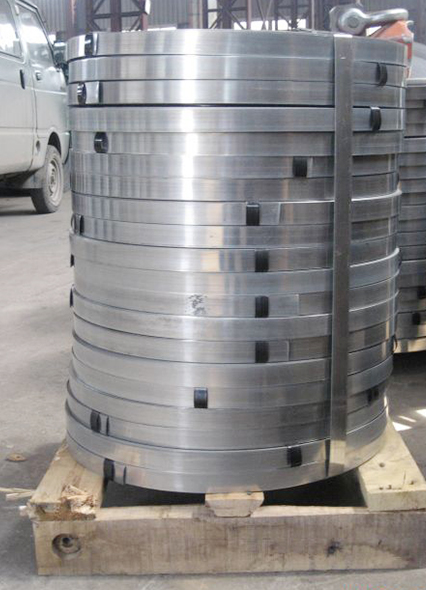

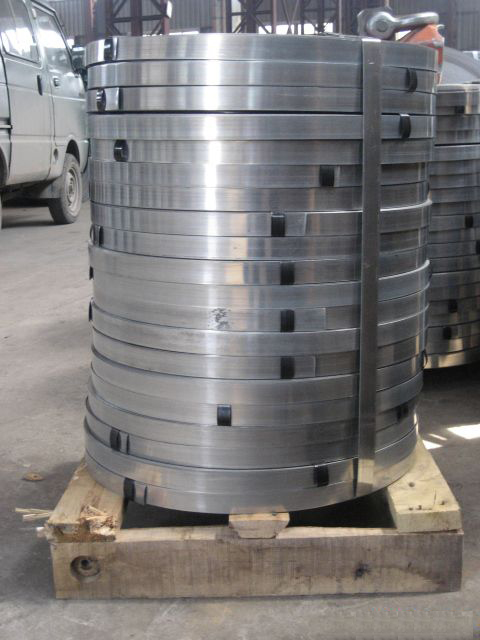

(2)Oscillate wound
ID406mm
Sizethickness0.4-0.9mm, width12.7mm, 16mm, 19mm, 32mm
Coil weight:width12.7mm, 16mm, 19mm 45kg±2kg/bundle; width32mm 280-600kg/bundle, can produce it as per customer's request.
Surface and edge

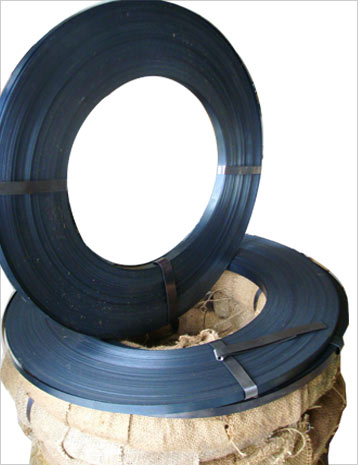

(1)Blue-oiled steel packing strips
(2)Blue-waxed steel packing strips
(3)Painted-waxed steel packing strips.
(4)We can make the edge smoother of the steel packing strips,and can produce it as per customer's request.
